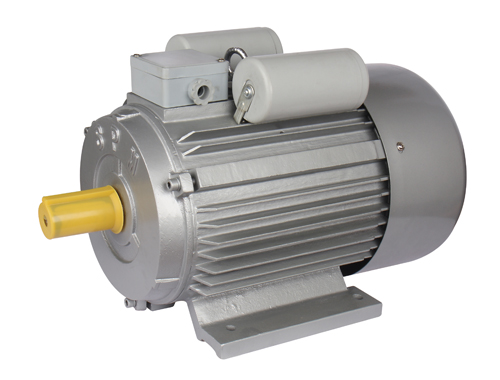

YCL SERIES SINGLE-PHASE ASYNCHRONOUS MOTORS

  •  YCL SERIES SINGLE-PHASE ASYNCHRONOUS MOTORS

Description

YCL series heavy-duty capacitor start and run, single phase induction motors of "FUXING" brand are suitable for driving small-size turning machine, especially suitable for household and workshop where only need single-phase power be supplied. This series motors are designed with advanced technique and made of quality materials. It also have following features: low noise, low temperature rise, small starting current, high starting torque, reliable operation, easy maintenance and nice appearance, they also meet the relative standards of IEC.
YCL series motors are similar to YC series in appearance. Comparing with the same output of YC series motors, YCL series temperature rise be reduced 8.74k on average, efficiency be increased 4.21%, power factor be increased 0.16.


Operating Condiyions:
Ambient temperature: -15℃≤θ≤40℃ Above sea level: not exceed 1000m Rated voltage: ±5%
  • Parameter
  • Type Output Current
    (A)
    Power
    Eff
    (%)
    Speed
    (r/min)
    Tstart/Tn Ist/In Tmax/Tn
    kW HP
    YCL90S-2 1.1 1.5 7.2 0.95 73.2 2880 2.8 6 1.8
    YCL90L-2 1.5 2 8.9 0.97 76 2900 2.8 7 1.8
    YCL100L-2 2.2 3 13.2 0.96 78.8 2900 3 6.5 1.8
    YCL90S-4 0.75 1 5 0.93 73.3 1450 2.8 6.5 1.8
    YCL90L-4 1.1 1.5 7.8 0.9 75 1450 2.5 6 1.8
    YCL100L-4 1.5 2 9.3 0.92 79.4 1450 2.8 7 1.8
    YCL112M-4 2.2 3 13.6 0.9 81.6 1450 2.3 6.5 1.8
    YCL132S1-4 3 4 18.2 0.9 83.2 1450 2.1 6.5 1.8
    YCL132S2-4 3.7 5 22 0.9 84.9 1450 2.1 6.5 1.8
    YCL132M1-4 5.5 7.5 32.5 0.9 85 1460 2 6.5 1.8
    YCL132M2-4 7.5 10 40 0.9 85.5 1460 2 6.5 1.8

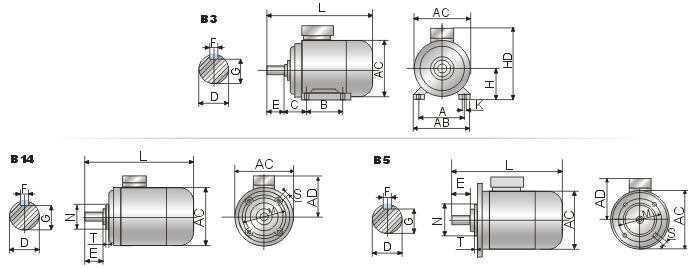

    Frame
    No
    Installation Size Overall Dimension(mm)
    A B C D E F G H K M N P R S T AB AC AD HD L
    71 112 90 45 14 30 5 11 71 7 130 110 160 0 10 3.5 145 145 140 180 255
    80 125 100 50 19 40 6 16 80 10 165 130 200 0 12 3.5 160 165 150 200 295
    90S 140 100 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 185 160 240 370
    90L 140 125 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 185 160 240 400
    100L 160 140 63 28 60 8 24 100 12 215 180 250 0 15 4 205 220 180 260 430
    112M 190 140 70 28 60 8 24 112 12 215 180 250 0 15 4 245 250 190 300 455
    132S 216 140 89 38 80 10 33 132 12 265 230 300 0 15 4 280 290 210 350 525
    132M 216 178 89 38 80 10 33 132 12 265 230 300 0 15 4 280 290 210 350 553
