Y2 SERIES THREE-PHASE ASYNCHRONOUS MOTORS
- Location :
- Home
- >Products
- >Iron shell motors
.jpg)
Description

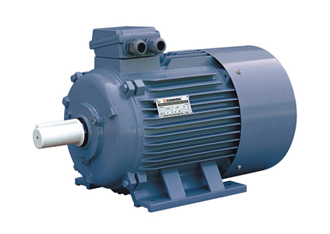

Y2 Series motor is totally enclosed and fan cooling, three-phase squirrel cage induction motor. It is newly deigned in conformity with the relevant rules of IEC and DIN42673 standards.
Y2 series motors have outstanding performance, such as high efficiency, less comsuption, high starting torque, low noise, little vibration, reliable operation and easy maintenance etc.
Y2 series motors are widely used in many places, where do not exist combustible, explosive or corrosive gas, without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines etc.
Operating Condiyions:
Y2 series motors have outstanding performance, such as high efficiency, less comsuption, high starting torque, low noise, little vibration, reliable operation and easy maintenance etc.
Y2 series motors are widely used in many places, where do not exist combustible, explosive or corrosive gas, without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines etc.
Operating Condiyions:
- Parameter
Type Output(kw) Current
(A)Power
Eff
(%)Speed
(r/min)Tstart/Tn Ist/In Tmax/Tn NW.kg
(cm)Packing Size
(cm)380V 50Hz Synchronous Speed 3000 r/min (2 Poles) Y2-631-2 0.18 0.51 0.80 65.0 2730 2.2 5.5 2.2 9 27.5x22.8x18.5 Y2-362-2 0.25 0.67 0.81 68.0 2725 2.2 5.5 2.2 10 27.5x22.8x18.5 Y2-711-2 0.37 0.98 0.81 70.0 2725 2.2 6.1 2.2 13 30x24.5x20 Y2-712-2 0.55 1.33 0.82 73.0 2725 2.2 6.1 2.3 14 30x24.5x20 Y2-801-2 0.75 1.78 0.83 75.0 2845 2.2 6.1 2.3 15 36x31x22.8 Y2-802-2 1.1 2.49 0.84 77.0 2840 2.2 7 2.3 17 36x31x22.8 Y2-90S-2 1.5 3.34 0.84 79.0 2840 2.2 7 2.3 26 41x33x25 Y2-90L-2 2.2 4.69 0.85 81.0 2840 2.2 7 2.3 28 41x33x25 Y2-100L-2 3 6.14 0.87 83.0 2860 2.2 7.5 2.3 41 47x37x29 Y2-112M-2 4 7.83 0.88 85.0 2880 2.2 7.5 2.3 53 48x39x31 Y2-132S1-2 5.5 10.70 0.88 86.0 2900 2.2 7.5 2.3 77 55x43x35 Y2-132S2-2 7.5 14.20 0.88 87.0 2900 2.2 7.5 2.3 85 55x43x35 Y2-160M1-2 11 20.90 0.89 88.0 2920 2.2 7.5 2.3 130 75x50x42 Y2-160M2-2 15 27.90 0.89 89.0 2920 2.2 7.5 2.3 140 75x50x42 Y2-160L-2 18.5 33.90 0.90 90.0 2920 2.2 7.5 2.3 200 81x57x46.5 Y2-180M-2 22 40.50 0.90 90.0 2930 2 7.5 2.3 217 81x57x46.5 Y2-200L1-2 30 54.80 0.90 91.2 2940 2 7.5 2.3 230 84x61.5x49 Y2-200L2-2 37 66.60 0.90 92.0 2940 2 7.5 2.3 249 84x61.5x49 Y2-225M-2 45 81.00 0.90 92.3 2960 2 7.5 2.3 260 94x64x57 Y2-250M-2 55 99.60 0.90 92.5 2960 2 7.5 2 400 103x75x68 Y2-280S-2 75 136.1 0.90 93.0 2970 2 7.5 2.3 Y2-280M-2 90 162 0.90 93.8 2970 2 7.5 2.3 Y2-315S-2 110 195.4 0.91 94 2980 1.8 7.1 2.2 Y2-315M-2 132 233.2 0.91 94.5 2980 1.8 7.1 2.2 Y2-315L1-2 160 279.3 0.92 94.6 2980 1.8 7.1 2.2 Y2-315L2-2 200 348.4 0.92 94.8 2980 1.8 7.1 2.2 380V 50Hz Synchronous Speed 1500 r/min (4 Poles) Y2-631-4 0.12 0.43 0.72 57.0 1315 2.1 4.4 2.2 9 27.5x22.8x18.5 Y2-632-4 0.18 0.61 0.73 60.0 1315 2.1 4.4 2.2 10 27.5x22.8x18.5 Y2-711-4 0.25 0.76 0.74 65.0 1345 2.1 5.2 2.2 13 30x24.5x20 Y2-712-4 0.37 1.07 0.75 67.0 1340 2.1 5.2 2.2 14 30x24.5x20 Y2-801-4 0.55 1.54 0.75 71.0 1390 2.4 5.2 2.3 15 36x31x22.8 Y2-802-4 0.75 1.99 0.76 73.0 1380 2.3 6 2.3 17 36x31x22.8 Y2-90S-4 1.1 2.80 0.77 750 1390 2.3 6 2.3 26 41x33x25 Y2-90L-4 1.5 3.65 0.79 78.0 1390 2.3 6 2.3 28 41x33x25 Y2-100L1-4 2.2 5.05 0.81 80.0 1410 2.3 7 2.3 41 47x37x29 Y2-100L2-4 3 6.64 0.82 82.0 1410 2.3 7 2.3 43 47x37x29 Y2-112M-4 4 8.62 0.82 84.0 1410 2.3 7 2.3 53 48x39x31 Y2-132S-4 5.5 11.50 0.83 85.0 1435 2.3 7 2.3 77 55x43x35 Y2-132M-4 7.5 15.30 0.84 87.0 1445 2.3 7 2.3 86 60x43x35 Y2-160M-4 11 22.20 0.84 88.0 1445 2.2 7 2.3 130 75x50x42 Y2-160L-4 15 29.80 0.85 89.0 1450 2.2 7.5 2.3 140 75x50x42 Y2-180M-4 18.5 36.10 0.86 90.5 1450 2.2 7.5 2.3 200 81x57x46.5 Y2-180L-4 22 42.60 0.86 91.0 1460 2.2 7.5 2.3 217 81x57x46.5 Y2-200L-4 30 57.20 0.86 92.0 1460 2.2 7.2 2.3 230 84x61.5x49 Y2-225S-4 37 69.60 0.87 92.5 1470 2.2 7.2 2.3 250 94x64x57 Y2-225M-4 45 84.00 0.87 92.8 1480 2.2 7.2 2.3 260 94x94x57 Y2-250M-4 55 102.90 0.87 93.0 1470 2.2 7.2 2.2 400 103x75x68 Y2-280S-4 75 139.6 0.87 93.8 1480 2.2 7.2 2.3 Y2-280M-4 90 166.9 0.87 94.2 1490 2.2 7.2 2.3 Y2-315S-4 110 201 0.88 94.5 1490 2.1 6.9 2.2 Y2-315M-4 132 240.4 0.88 94.8 1490 2.1 6.9 2.2 Y2-315L1-4 160 287.8 0.89 94.9 1490 2.1 6.9 2.2 Y2-315L2-4 200 359.4 0.89 95.0 1490 2.1 6.9 2.2 380V 50Hz Synchronous Speed 1000 r/min (6 Poles) Y2-711-6 0.18 0.71 0.66 56.0 900 1.9 4 2 13 30x24.5x20 Y2-712-6 0.25 0.92 0.68 59.0 900 1.9 4 2 14 30x24.5x20 Y2-801-6 0.37 1.27 0.70 62.0 900 1.9 4.7 2 15 36x31x228 Y2-802-6 0.55 1.74 0.72 65.0 900 1.9 4.7 2.1 17 36x31x228 Y2-90S-6 0.75 2.23 0.72 69.0 910 2 5.5 2.1 26 41x33x25 Y2-90L-6 1.1 3.10 0.73 72.0 910 2 5.5 2.1 28 41x33x25 Y2-100L-6 1.5 3.89 0.75 76.0 940 2 5.5 2.1 41 47x37x29 Y2-112M-6 2.2 5.46 0.76 79.0 940 2 6.5 2.1 53 48x39x31 Y2-132S-6 3 7.10 0.76 81.0 960 2.1 6.5 2.1 77 55x43x35 Y2-132M1-6 4 9.30 0.76 82.0 960 2.1 6.5 2.1 86 60x43x35 Y2-132M2-6 5.5 12.30 0.77 84.0 960 2.1 6.5 2.1 95 60x43x35 Y2-160M-6 7.5 16.70 0.77 86.0 970 2 6.5 2.1 130 75x50x42 Y2-160L-6 11 23.60 0.78 87.5 970 2 6.5 2.1 140 75x50x42 Y2-180L-6 15 30.70 0.81 89.0 970 2 7 2.1 217 81x57x46.5 Y2-200L1-6 18.5 37.70 0.81 90.0 970 2.1 7 2.1 230 84x61.5x49 Y2-200L2-6 22 44.10 0.83 90.0 970 2.1 7 2.1 249 84x61.5x49 Y2-225M-6 30 58.40 0.84 91.5 980 2 7 2.1 260 94x64x57 Y2-250M-6 37 70.40 0.86 92.0 965 2.1 7 2.1 400 103x75x68 Y2-280S-6 45 85.95 0.86 92.5 980 2.1 7 2 Y2-280M-6 55 104.7 0.86 92.8 980 2.1 7 2 Y2-315S-6 75 141.7 0.86 93.5 990 2 7 2 Y2-315M-6 90 169.5 0.86 93.8 990 2 7 2 Y2-315L1-6 110 206.7 0.86 94 990 2 6.7 2 Y2-315L2-6 132 244.7 0.87 94.2 990 2 6.7 2 380V 50Hz Synchronous Speed 750 r/min (8 Poles) Y2-801-8 0.18 0.86 0.61 51.0 700 1.8 3.3 1.9 15 36x31x228 Y2-802-8 0.25 1.14 0.61 54.0 700 1.8 3.3 1.9 17 36x31x228 Y2-90S-8 0.37 1.47 0.61 62.0 700 1.8 4 1.9 26 41x33x25 Y2-90L-8 0.55 2.10 0.61 63.0 700 1.8 4 2 28 41x33x25 Y2-100L1-8 0.75 2.34 0.67 71.0 710 1.8 4 2 41 47x37x29 Y2-100L2-8 1.1 3.22 0.69 73.0 710 1.8 5 2 43 47x37x29 Y2-112M-8 1.5 4.41 0.69 75.0 700 1.8 5 2 53 48x39x31 Y2-132S-8 2.2 6.00 0.71 78.0 710 1.8 6 2 77 55x43x35 Y2-132M-8 3 7.60 0.73 79.0 710 1.8 6 2 86 60x43x35 Y2-160M1-8 4 10.00 0.73 81.0 720 1.9 6 2 130 75x50x42 Y2-160M2-8 5.5 13.30 0.74 83.0 720 2 6 2 130 75x50x42 Y2-160L-8 7.5 17.80 0.75 85.5 720 2 6 2 140 75x50x42 Y2-180L-8 11 24.90 0.76 87.5 730 2 6.6 2 217 81x57x46.5 Y2-200L-8 15 33.30 0.76 88.0 730 2 6.6 2 230 84x61.5x49 Y2-225S-8 18.5 40.10 0.76 90.0 730 1.9 6.6 2 250 94x64x57 Y2-225M-8 22 46.80 0.78 90.5 740 1.9 6.6 2 260 94x64x57 Y2-250M-8 30 63.00 0.79 91.0 740 1.9 6.6 2 400 103x75x68 Y2-280S-8 37 77.77 0.79 91.5 740 1.9 6.6 2 Y2-280M-8 45 94.07 0.79 92.0 740 1.9 6.6 2 Y2-315S-8 55 111.2 0.81 92.8 740 1.8 6.6 2 Y2-315M-8 75 151.3 0.81 93.0 740 1.8 6.6 2 Y2-315L1-8 90 177.8 0.82 93.8 740 1.8 6.6 2 Y2-315L2-8 110 216.8 0.82 94.0 740 1.8 6.6 2 .jpg)

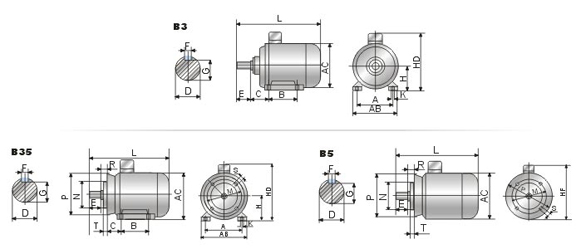

Frame
