Y SERIES THREE-PHASE ASYNCHRONOUS MOTORS
- Location :
- Home
- >Products
- >Iron shell motors

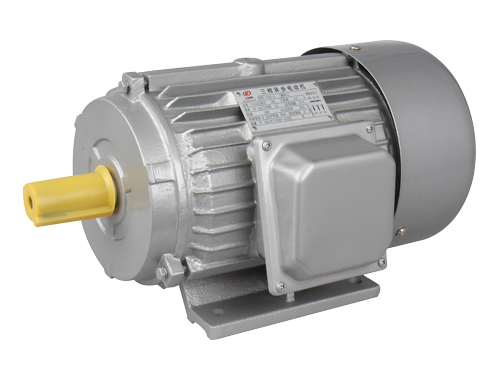

.jpg)
Description
Y Series motor is totally enclosed and fan cooling, three-phase squirrel cage induction motor. It is newly deigned in conformity with the relevant rules of IEC and DIN42673 standards.
Y series motors have outstanding performance, such as high efficiency, less comsuption, high starting torque, low noise, little vibration, reliable operation and easy maintenance etc.
Y series motors are widely used in many places, where do not exist combustible, explosive or corrosive gas, without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines etc.
Operating Condiyions:
Y series motors have outstanding performance, such as high efficiency, less comsuption, high starting torque, low noise, little vibration, reliable operation and easy maintenance etc.
Y series motors are widely used in many places, where do not exist combustible, explosive or corrosive gas, without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines etc.
Operating Condiyions:
- Parameter
Type Output Current
(A)Power
Eff
(%)Speed
(r/min)Tstart/Tn Ist/In Tmax/Tn kW HP Y801-2 0.75 1 1.8 0.84 75 2830 2.2 6.5 2.3 Y802-2 1.1 1.5 2.5 0.86 77 2830 2.2 7 2.3 Y801-4 0.55 0.75 1.5 0.76 73 1390 2.4 6 2.3 Y802-4 0.75 1 2 0.76 74.5 1390 2.3 6 2.3 Y90S-2 1.5 2 3.4 0.85 78 2840 2.2 7 2.3 Y90L-2 2.2 3 4.8 0.86 80.5 2840 2.2 7 2.3 Y90S-4 1.1 1.5 2.8 0.78 78 1400 2.3 6.5 2.3 Y90L-4 1.5 2 3.7 0.79 79 1400 2.3 6.5 2.3 Y90S-6 0.75 1 2.3 0.7 72.5 910 2 5.5 2.2 Y90L-6 1.1 1.5 3.2 0.72 73.5 910 2 5.5 2.2 Y100L-2 3 4 6.4 0.87 82 2870 2.2 7 2.3 Y100L1-4 2.2 3 5 0.82 81 1430 2.2 7 2.3 Y100L2-4 3 4 6.8 0.81 82.5 1430 2.2 7 2.3 Y100L-6 1.5 2 4 0.74 77.5 940 2 6 2.2 Y112M-2 4 5.5 8.2 0.87 85.5 2890 2.2 7 2.3 Y112M-4 4 5.5 8.8 0.82 84.5 1440 2.2 7 2.3 Y112M-6 2.2 3 5.6 0.74 80.5 940 2.2 6 2.2 Y132S1-2 5.5 7.5 11.1 0.88 85.5 2900 2 7 2.3 Y132S2-2 7.5 10 15 0.88 86.2 2900 2 7 2.3 Y132S-4 5.5 7.5 11.7 0.84 85.5 1440 2.2 7 2.3 Y132M-4 7.5 10 15.4 0.85 87 1440 2 7 2.3 Y132S-6 3 4 7.3 0.76 83 960 2 6.5 2.2 Y132M1-6 4 5.5 9.4 0.77 84 960 2 6.5 2.2 Y132M2-6 5.5 7.5 12.6 0.78 85.3 960 2 6.5 2.2 Y160M1-2 11 15 21.8 0.88 87.2 2930 2 7 2.2 Y160M2-2 15 20 29.4 0.88 88.2 2930 2 7 2.2 Y160L-2 18.5 25 35.5 0.89 89 2930 2 7 2.2 Y160M-4 11 15 22.6 0.84 88 1460 2.2 7 2.2 Y160L-4 15 20 30.3 0.85 88.5 1460 2.2 7 2.2 Y160M-6 7.5 10 17 0.78 86 970 2 6.5 2 Y160L-6 11 15 24.6 0.78 87 970 2 6.5 2 Y180M-2 22 30 42.2 0.89 89 2940 2 7 2.2 Y180M-4 18.5 25 35.9 0.86 91 1470 2 7 2.2 Y180L-4 22 30 42.5 0.86 91.5 1470 2 7 2.2 Y180L-6 15 20 31.6 0.81 89.5 970 1.8 6.5 2 Y200L1-2 30 40 56.9 0.89 90 2950 2 7 2.2 Y200L2-2 37 50 69.8 0.89 90.5 2950 2 7 2.2 Y200L-4 30 40 56.8 0.87 92.2 1470 2 7 2.2 Y200L1-6 18.5 25 37.7 0.83 89.8 970 1.8 6.5 2 Y200L2-6 22 30 44.6 0.83 90.2 970 1.8 6.5 2 Y225M-2 45 60 84.4 0.89 91 2970 2 7 2.2 Y225S-4 37 50 69.9 0.87 92.5 1480 2 7 2.2 Y225M-4 45 60 84.7 0.87 92.8 1480 2 7 2.2 Y225M-6 30 40 59.3 0.84 91.5 980 1.8 6.5 2 .jpg)

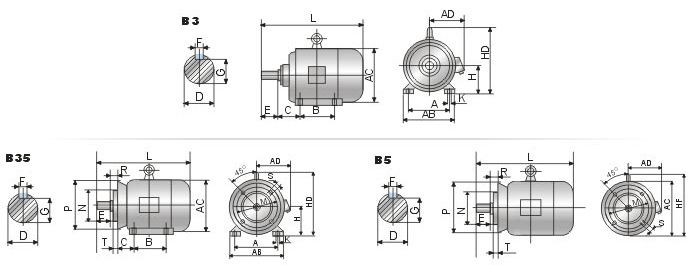

Frame
