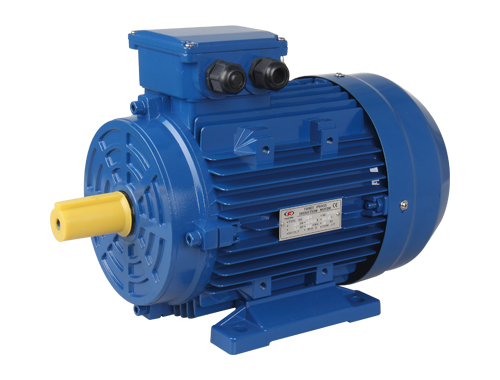

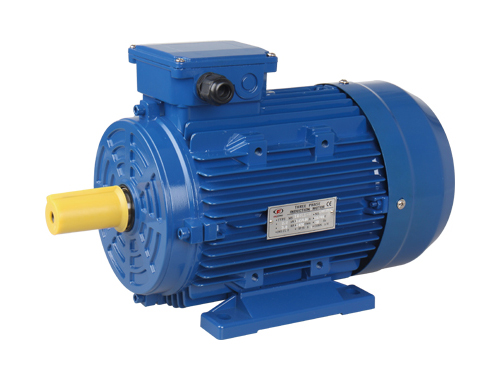

MS THREE PHASE ALUMINIUM HOUSING MOTOR
- Location :
- Home
- >Products
- >Aluminium shell motors
.jpg)
.jpg)
Description
Three phase, MS series Aluminium housing motors are acknowledged that having a good fame for quality and reliability, they are suitable for driving machines which do not have special requirement, such as machine tools, pumps, blowers, etc.
- Superior finish - Externally Ventilated - Light weight construction
- Top mounted terminal box - IP55 Protection
- Interchangeable foot mounting and flange mounting - Motor frame Size form 56-160 - 2,4 and 6 pole
Operating Condiyions:
- Superior finish - Externally Ventilated - Light weight construction
- Top mounted terminal box - IP55 Protection
- Interchangeable foot mounting and flange mounting - Motor frame Size form 56-160 - 2,4 and 6 pole
Operating Condiyions:
- Parameter
Type Output Current
(A)Power
Eff
(%)Speed
(r/min)Tstart/Tn Ist/In Tmax/Tn kW HP MS561-2 0.09 0.12 0.3 0.76 60 2750 2.3 6 2.4 MS562-2 0.12 0.16 0.37 0.78 63 2750 2.3 6 2.4 MS631-2 0.18 0.24 0.53 0.8 65 2780 2.3 6 2.4 MS632-2 0.25 0.33 0.69 0.81 68 2780 2.3 6 2.4 MS711-2 0.37 0.5 0.99 0.81 70 2800 2.3 6 2.4 MS712-2 0.55 0.75 1.4 0.82 73 2800 2.3 6 2.4 MS801-2 0.75 1 1.83 0.83 75 2825 2.3 6 2.4 MS802-2 1.1 1.5 2.58 0.84 77 2825 2.3 6.5 2.4 MS90S-2 1.5 2 3.43 0.84 79 2840 2.3 6.5 2.4 MS90L-2 2.2 3 4.85 0.85 81 2840 2.3 6.5 2.4 MS100L-2 3 4 6.31 0.87 83 2880 2.3 7 2.4 MS112M-2 4 5.5 8.12 0.88 85 2890 2.3 7 2.4 MS132S1-2 5.5 7.5 11 0.88 86 2900 2.3 7 2.4 MS132S2-2 7.5 10 14.9 0.88 87 2900 2.3 7 2.4 MS160M1-2 11 15 21.3 0.89 88 2930 2.3 7 2.4 MS160M2-2 15 20 28.8 0.89 89 2930 2.3 7 2.4 MS160L-2 18.5 25 34.7 0.9 90 2930 2.3 7 2.4 MS561-4 0.06 0.08 0.27 0.68 50 1300 2.2 5.5 2.3 MS562-4 0.09 0.12 0.36 0.7 54 1300 2.2 5.5 2.3 MS631-4 0.12 0.16 0.44 0.72 57 1330 2.2 5.5 2.3 MS632-4 0.18 0.24 0.62 0.73 60 1330 2.2 5.5 2.3 MS711-4 0.25 0.33 0.79 0.74 65 1360 2.2 5.5 2.3 MS712-4 0.37 0.5 1.12 0.75 67 1360 2.2 5.5 2.3 MS801-4 0.55 0.75 1.57 0.75 71 1380 2.3 6 2.4 MS802-4 0.75 1 2.05 0.76 73 1380 2.3 6 2.4 MS90S-4 1.1 1.5 2.89 0.77 75 1390 2.3 6 2.4 MS90L-4 1.5 2 3.7 0.79 78 1390 2.3 6 2.4 MS100L1-4 2.2 3 5.16 0.81 80 1410 2.3 7 2.4 MS100L2-4 3 4 6.78 0.82 82 1410 2.3 7 2.4 MS112M-4 4 5.5 8.82 0.82 84 1435 2.3 7 2.4 MS132S-4 5.5 7.5 11.8 0.83 85 1445 2.3 7 2.4 MS132M-4 7.5 10 15.6 0.84 87 1445 2.3 7 2.4 MS160M-4 11 15 22.3 0.84 88 1450 2.2 7 2.3 MS160L-4 15 20 30.1 0.85 89 1450 2.2 7 2.3 MS711-6 0.18 0.24 0.74 0.66 56 900 2 5.5 2.2 MS712-6 0.25 0.33 0.95 0.68 59 900 2 5.5 2.2 MS801-6 0.37 0.5 1.3 0.7 62 900 2 5.5 2.2 MS802-6 0.55 0.75 1.79 0.72 65 900 2 5.5 2.2 MS90S-6 0.75 1 2.29 0.72 69 910 2.1 5.5 2.2 MS90L-6 1.1 1.5 3.18 0.73 72 910 2.1 5.5 2.2 MS100L-6 1.5 2 3.95 0.76 76 940 2.1 5.5 2.2 MS112M-6 2.2 3 5.57 0.76 79 940 2.2 6.5 2.3 MS132S-6 3 4 7.4 0.76 81 960 2.2 6.5 2.3 MS132M1-6 4 5.5 9.75 0.76 82 960 2.2 6.5 2.3 MS132M2-6 5.5 7.5 12.9 0.77 84 960 2.2 6.5 2.3 MS160M-6 7.5 10 17 0.77 86 970 2.2 6.5 2.3 MS160L-6 11 15 24.2 0.78 87 970 2.2 6.5 2.3
Frame
NoInstallation Size Installation Size B14 Installation Size B5 Overall Dimension(mm) A B C D E F G H K M N P S T M N P S T AB AC AD HD L 56 90 71 36 9 20 3 7.2 56 6 65 50 80 M5 2 100 80 120 8.5 3 112 108 93 149 192 63 100 80 40 11 23 4 8.5 63 7 75 60 90 M5 2.5 115 95 140 10 3 120 120 97 160 211 71 112 90 45 14 30 5 11 71 7 85 70 105 M6 2.5 130 110 160 10 3.5 135 140 104 175 240 80 125 100 50 19 40 6 16 80 10 100 80 120 M6 3 165 130 200 12 3.5 155 160 113 193 284 90S 140 100 56 24 50 8 20 90 10 115 95 140 M8 3 165 130 200 12 3.5 175 175 123 213 316 90L 140 125 56 24 50 8 20 90 10 115 95 140 M8 3 165 130 200 12 3.5 175 175 123 213 341 100L 160 140 63 28 60 8 24 100 12 130 110 160 M8 3.5 215 180 250 15 4 200 195 157 257 377 112M 190 140 70 28 60 8 24 112 12 130 110 160 M8 3.5 215 180 250 15 4 226 220 163 275 392 132S 216 140 89 38 80 10 33 132 12 165 130 200 M10 3.5 265 230 300 15 4 265 265 183 315 463 132M 216 178 89 38 80 10 33 132 12 165 130 200 M10 3.5 265 230 300 15 4 265 265 183 315 501 160M 254 210 108 42 110 12 37 160 15 215 180 250 M12 4 300 250 350 19 5 310 320 223 383 606 160L 254 254 108 42 110 12 37 160 15 215 180 250 M12 4 300 250 350 19 5 310 320 223 383 650
