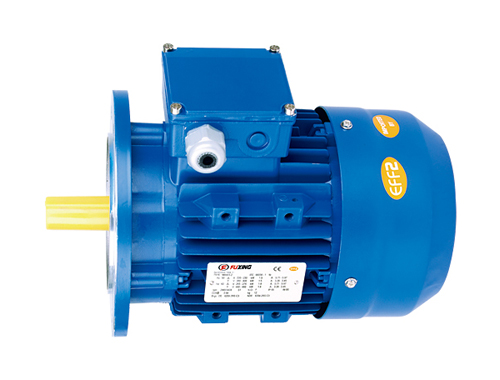

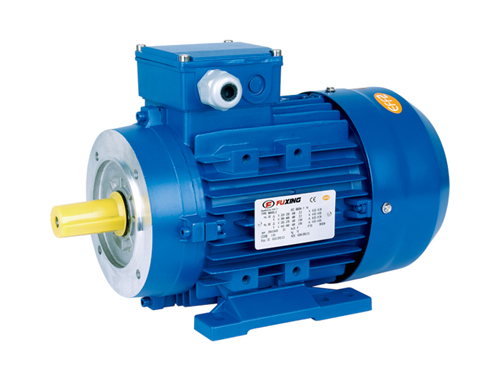

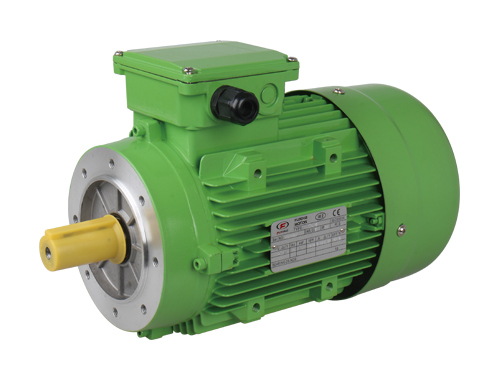

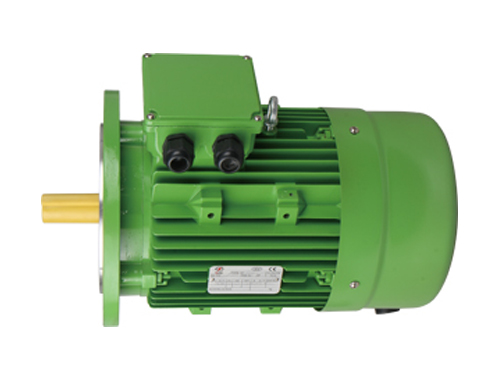

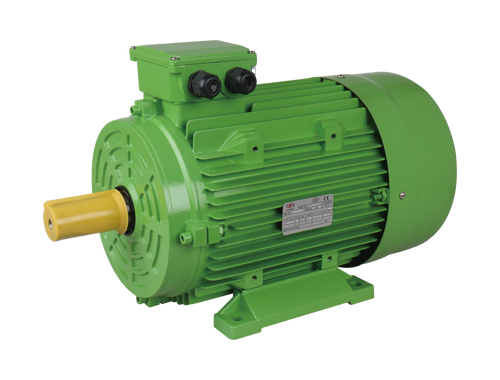

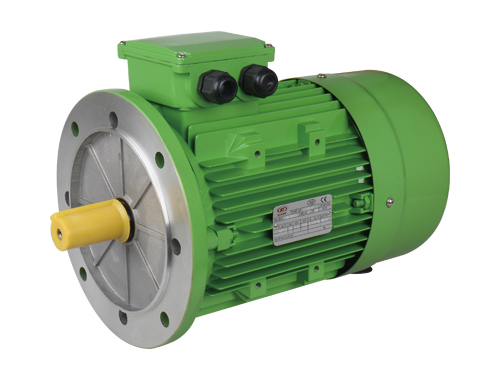

IE2 THREE PHASE ALUMINIUM HOUSING MOTOR

Description

Three phase, MS series Aluminium housing motors are acknowledged that having a good fame for quality and reliability, they are suitable for driving machines which do not have special requirement, such as machine tools, pumps, blowers, etc.
- Superior finish - Externally Ventilated - Light weight construction
- Top mounted terminal box - IP55 Protection
- Interchangeable foot mounting and flange mounting - Motor frame Size form 56-160 - 2,4 and 6 pole

Operating Condiyions:

Parameter

Model	Power		Voltage (V)	Current(A)	Speed r/min	Eff.(%)			Power factor	Ist/In	Tmax/Tn
Model	Kw	HP	Voltage (V)	Current(A)	Speed r/min	50%	75%	100%	Power factor	Ist/In	Tmax/Tn
MS8012	0.75	1	230/400	3.0/1.73	2800	76.5	77.3	77.4	0.813	2.2	2.3
MS8022	1.1	1.5		4.2/2.43	2800	79.0	80.0	79.6	0.825	2.2	2.3
MS90S-2	1.5	2		5.53/3.19	2820	80.2	81.5	81.3	0.837	2.2	2.3
MS90L-2	2.2	3		7.93/4.58	2820	82.2	83.5	83.2	0.837	2.2	2.3
MS100L-2	3	4		10.5/6.06	2830	84.0	85.1	84.6	0.848	2.2	2.3
MS112M-2	4	5.5	400/690	7.97/4.6	2850	85.4	86.8	85.8	0.848	2.2	2.3
MS132S1-2	5.5	7.5		10.65/6.15	2870	86.7	87.3	87.0	0.860	2	2.3
MS132S2-2	7.5	10		14.35/8.28	2870	87.6	88.3	88.1	0.860	2	2.3
MS160M1-2	11	15		20.74/11.97	2900	89.0	89.8	89.4	0.860	2	2.3
MS160M2-2	15	20		27.99/16.16	2900	90.0	90.5	90.3	0.860	2	2.3
MS160L-2	18.5	25		33.83/19.53	2900	90.3	91.0	90.9	0.872	2	2.2
MS8024	0.75	1	230/400	3.28/1.9	1380	77.3	79.8	79.6	0.720	2.3	2.3
MS90S-4	1.1	1.5		4.57/2.64	1400	79.9	81.7	81.4	0.743	2.3	2.3
MS90L-4	1.5	2		6.02/3.48	1400	82.1	83.5	82.8	0.755	2.3	2.3
MS100L1-4	2.2	3		8.42/4.86	1420	82.6	84.5	84.3	0.778	2.2	2.3
MS100L2-4	3	4		11.32/6.54	1420	84.2	85.7	85.5	0.778	2.2	2.3
MS112M-4	4	5.5	400/690	8.47/4.89	1430	85.8	87.0	86.6	0.790	2.2	2.3
MS132S-4	5.5	7.5		11.18/6.45	1450	87.4	88.3	87.7	0.813	2.2	2.3
MS132M-4	7.5	10		14.85/8.58	1450	88.2	89.0	88.7	0.825	2.2	2.3
MS160M-4	11	15		21.84/12.61	1460	89.1	90.0	89.8	0.813	2.2	2.3
MS160L-4	15	20		29.08/16.79	1460	90.2	91.1	90.6	0.825	2.2	2.3
MS90S-6	0.75	1	230/400	3.82/2.2	910	73.4	76.3	75.9	0.650	2	2.2
MS90L-6	1.1	1.5		5.25/3.03	910	77.0	78.8	78.1	0.673	2	2.2
MS100L-6	1.5	2		6.77/3.91	940	79.6	80.8	79.8	0.697	2	2.2
MS112M-6	2.2	3		9.69/5.59	940	80.4	81.6	81.8	0.697	2	2.2
MS132S-6	3	4		12.56/7.25	960	81.0	83.4	83.3	0.720	2	2.2
MS132M1-6	4	5.5	400/690	9.36/5.4	960	82.7	84.5	84.6	0.732	2	2.2
MS132M2-6	5.5	7.5		12.47/7.2	960	84.8	86.2	86.0	0.743	2	2.2
MS160M-6	7.5	10		16.78/9.69	970	86.4	87.5	87.2	0.743	2	2
MS160L-6	11	15		24.19/13.97	970	88.2	89.2	88.7	0.743	2	2

Frame No	Installation Size										Installation Size B14					Installation Size B5					Overall Dimension (mm)
Frame No	A	B	C	D	E	F	G	H	K	O	M	N	P	S	T	M	N	P	S	T	AB	AC	AD	HD	L
80	125	100	50	19	40	6	16	80	10	1-M20X1.5	100	80	120	M6	3	165	130	200	12	3.5	155	160	113	193	284
90S	140	100	56	24	50	8	20	90	10	1-M20X1.5	115	95	140	M8	3	165	130	200	12	3.5	175	175	123	213	316
90L	140	125	56	24	50	8	20	90	10	1-M20X1.5	115	95	140	M8	3	165	130	200	12	3.5	175	175	123	213	341
100L	160	140	63	28	60	8	24	100	12	1-M20X1.5	130	110	160	M8	3.5	215	180	250	15	4	200	195	157	257	377
112M	190	140	70	28	60	8	24	112	12	2-M25X1.5	130	110	160	M8	3.5	215	180	250	15	4	226	220	163	275	392
132S	216	140	89	38	80	10	33	132	12	2-M25X1.5	165	130	200	M10	3.5	265	230	300	15	4	265	265	183	315	463
132M	216	178	89	38	80	10	33	132	12	2-M25X1.5	165	130	200	M10	3.5	265	230	300	15	4	265	265	183	315	501
160M	254	210	108	42	110	12	37	160	15	2-M40X1.5	215	180	250	M12	4	300	250	350	19	5	310	320	223	383	606
160L	254	254	108	42	110	12	37	160	15	2-M40X1.5	215	180	250	M12	4	300	250	350	19	5	310	320	223	383	650

B5R 4 Holes at 45'
TYPE	P	N	M	S	T
80	160	110	130	10	3.5
90	160	110	130	10	3.5
100	200	130	165	12	3.5
112	200	130	165	12	3.5
132	250	180	215	15	4.0

B14B 4 Holes at 45'
TYPE	P	N	M	S	T
80	160	110	130	M8	3.5
90	160	110	130	M8	3.5
100	200	130	165	M10	3.5
112	200	130	165	M10	3.5
132	250	180	215	M12	4.0
